Factory Small Tonnage Rubber Vulcanizing Molding Machine Rubber Hydraulic Press

1.0 Sets
MOQ
Factory Small Tonnage Rubber Vulcanizing Molding Machine Rubber Hydraulic Press
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Machine Type: Transfer Injection Molding Machine
Voltage: 220V/380V
Dimension(L*W*H): 1.2m*1.5m*1.9m
Weight: 0.8 Tons
Warranty: 1 Year
Key Selling Points: Competitive Price
Showroom Location: Turkey, United States, Brazil, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, Colombia, Algeria, South Africa, Ukraine, Tajikistan, Australia
Applicable Industries: Manufacturing Plant, Machinery Repair Shops
After-sales Service Provided: Engineers available to service machinery overseas
Injection Volume: 300cm3
Clamping Force: 300KN
Platen Size: 400*300mm
Space of Platens: 400mm
Max. Clamping Stroke: 350mm
Min. Mould Thickness: 60mm
Heating Power: 8KW
Total Power: 25KW
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Turkey, United States, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Kenya, Argentina, South Korea, Colombia, Algeria
인증: ISO 9001:2015; TUV CE
기본 정보
인증: ISO 9001:2015; TUV CE
결제 및 배송 조건
Packaging Details: Seaworthy package
Supply Ability: 500 Set/Sets per Year
제품 설명
Product Description

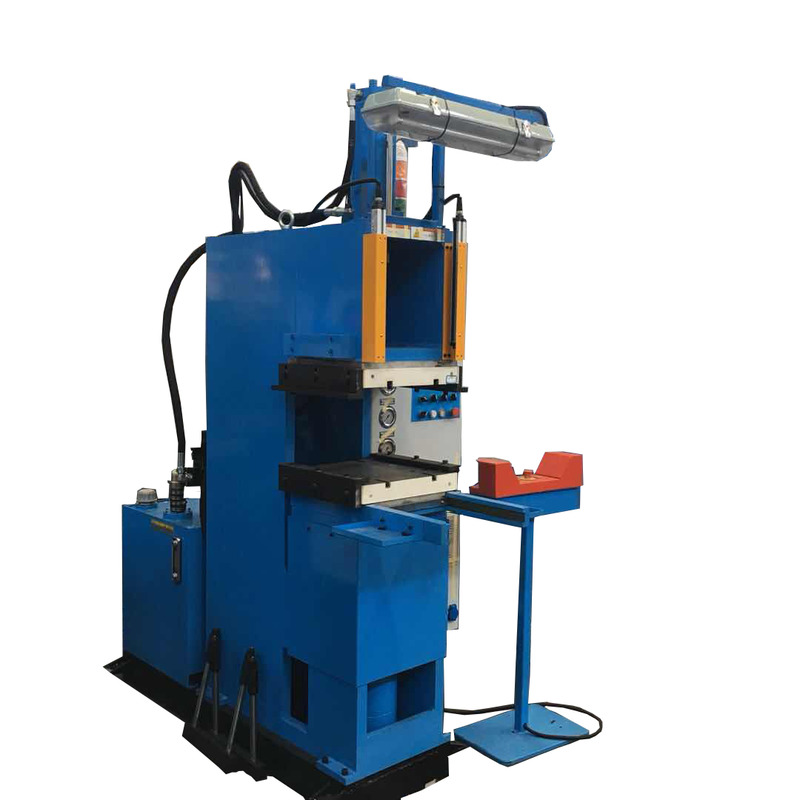

HYZ-30Y Rubber Transfer Press can treat materials as Natural Rubber, Nitrile Rubber, EPDM Rubber, Neoprene, Silicone and other rubber banded raw material. Via the injection molding technology, the above mentioned materials can be made into many different kinds of rubber products, such as seal ring, shock damper, etc.


This machine is not only in high degree of automation and high production efficiency, but also greatly improves quality of the rubber products. It is your ideal production equipment for high quality rubber products.

Specifications
HYZ-30Y
Injection Volume(cm3)
300
Clamping Force(kN)
300
Platen Size(mm)(Width*Length)
300*400
Dimension btwn Tiebar(mm)
C frame
Space of Platens(mm)
400
Max. Clamping Stroke(mm)
350
Min. Mold Thickness(mm)
60
Heating Power(KW)
8
Total Power(KW)
25
Dimensions(m)(L*W*H)
1.2*1.5*1.9
Reference Weight(Ton)
0.8
